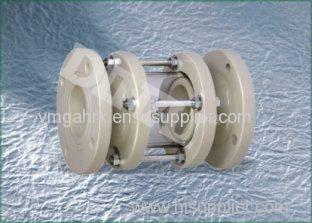

PPH Plastic Sight Glass Flange Connection 1-1/2"(D50mm) ~ 6"(D160mm) with Glass Body
Specifications:
Norminal size |
D1 |
D2 |
L |
T |
n |
Φ |
||
JIS |
DIN |
ANSI |
||||||
1/2"(D20mm) |
70 |
65 |
60 |
105 |
176 |
12 |
4 |
14 |
3/4"(D25mm) |
75 |
75 |
70 |
105 |
176 |
14 |
4 |
14 |
1"(D32mm) |
90 |
85 |
80 |
116 |
218 |
14 |
4 |
14 |
1-1/4"(D40mm) |
100 |
100 |
89 |
135 |
218 |
16 |
4 |
18 |
1-1/2"(D50mm) |
105 |
110 |
100 |
145 |
220 |
16 |
4 |
18 |
2"(D63mm) |
120 |
125 |
120 |
160 |
220 |
16 |
4 |
18 |
2-1/2"(D75mm) |
140 |
145 |
140 |
180 |
240 |
18 |
4 |
18 |
3"(D90mm) |
150 |
160 |
152 |
195 |
240 |
18 |
8 |
18 |
4"(D110mm) |
175 |
180 |
190 |
215 |
275 |
20 |
8 |
18 |
5"(D140mm) |
210 |
210 |
216 |
245 |
375 |
20 |
8 |
18 |
6"(D160mm) |
240 |
240 |
240 |
280 |
390 |
22 |
8 |
23 |
8"(D225mm) |
290 |
295 |
298 |
337 |
420 |
25 |
8 |
23 |
10”(D280) |
355 |
350 |
362 |
390 |
445 |
28 |
12 |
23 |
12”(D315mm) |
445 |
400 |
432 |
435 |
460 |
30 |
12 |
23 |
PPH sight glass specification |
||
Working pressure |
1.0Mpa |
|
Working pressure |
-14~90 |
|
Standard |
DIN/ANSI/JIS/BS |
|
1 |
